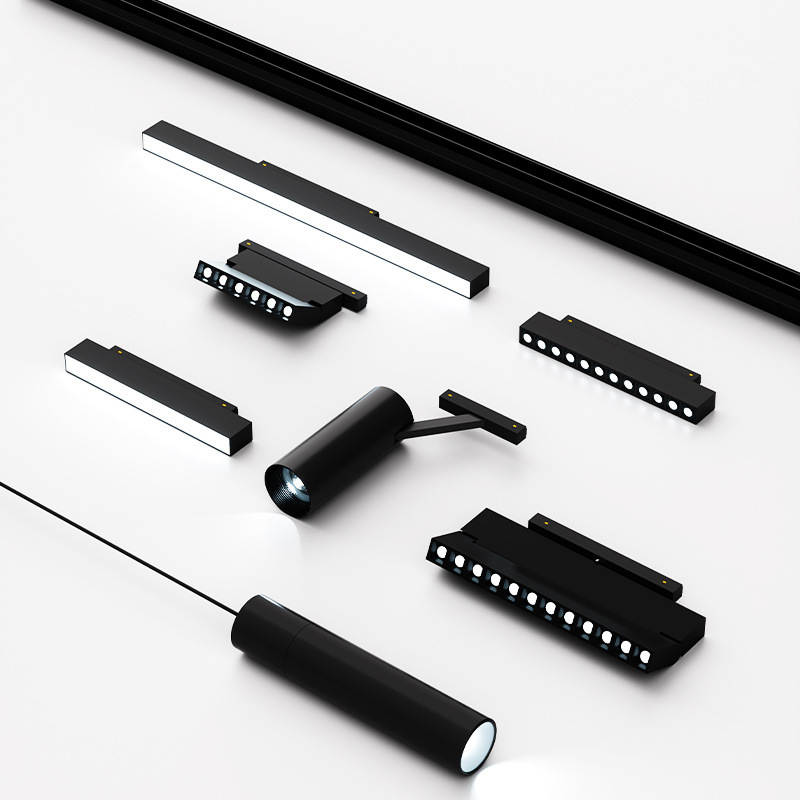

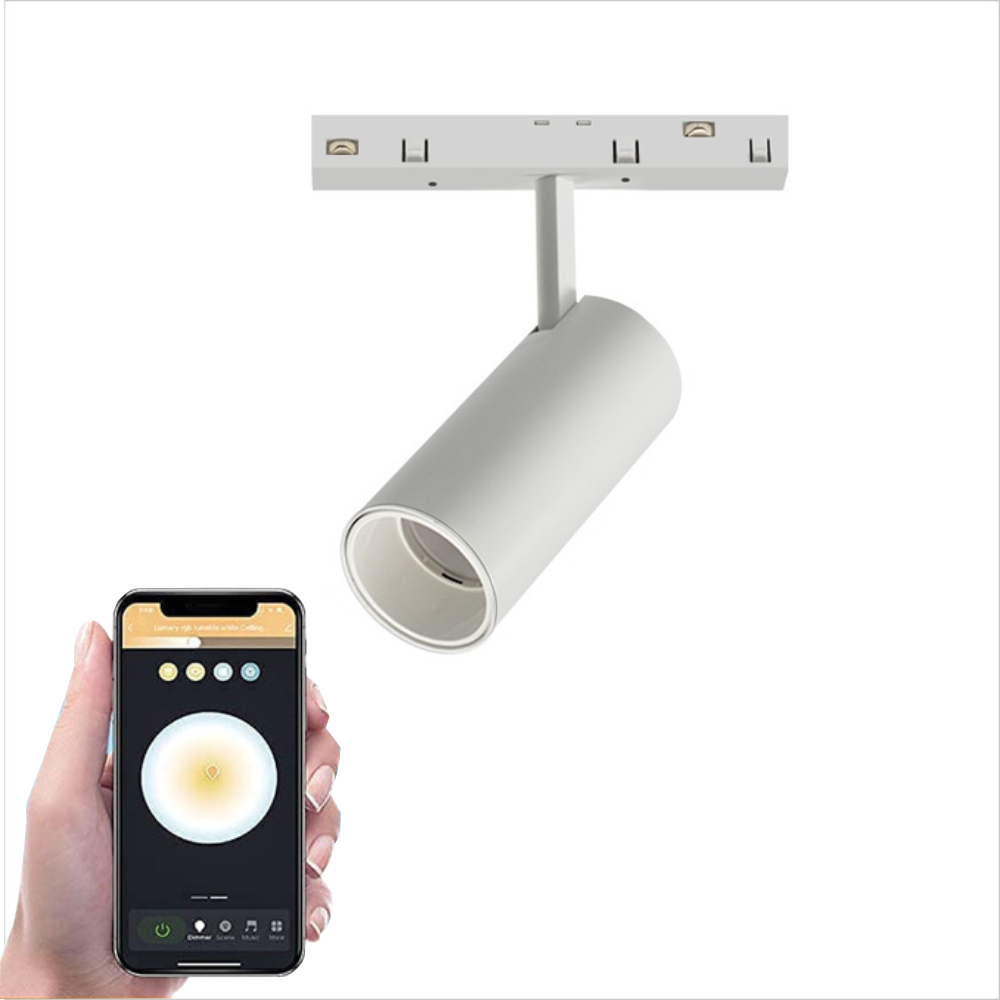

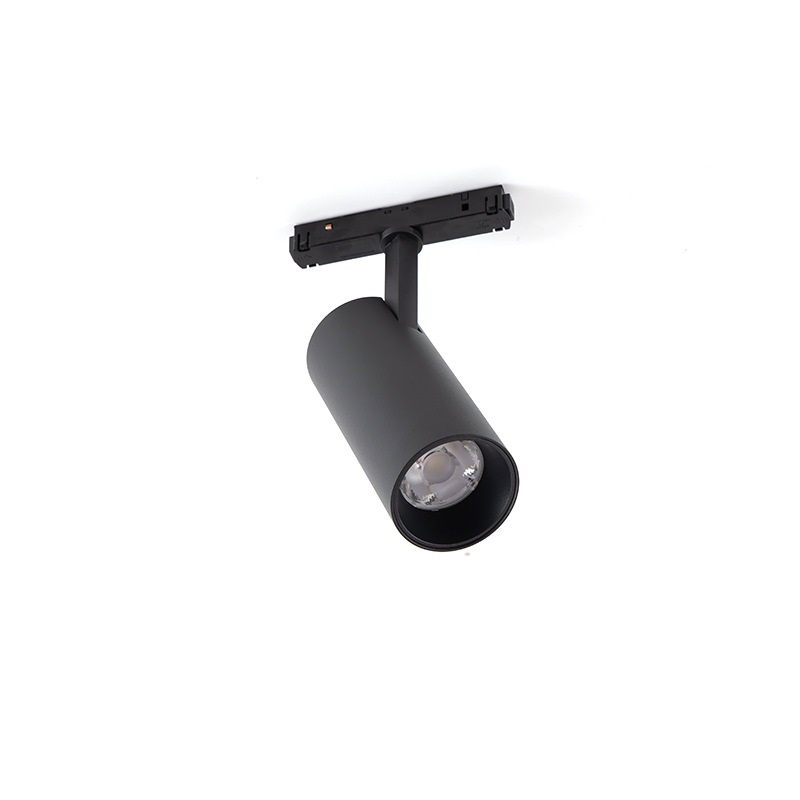

20mm Magnetic TracK Spot Light

Price Interview

Interview

Model

SM-MT03-TK,3W,15° 24° 36° SM-MT05-TK,5W,15° 24° 36° SM-MT07-TK,7W,15° 24° 36° SM-MT10-TK,10W,15° 24° 36° SM-MT15-TK,15W,15° 24° 36° SM-MT20-TK,20W,15° 24° 36° SM-MT30-TK,30W,15° 24° 36°

CCT

2700K 3000K 3500K 4000K 4500K 5700k 6500k Tunable White 2700-6500K

Dimmmable

Non dim Triac dim 1-10V dim Dali dim Tuya Wifi dim Tuya bluetooth dim Tuya Zigbee dim

Buy at Alibaba

Specifications select

Product Detail Installation Project

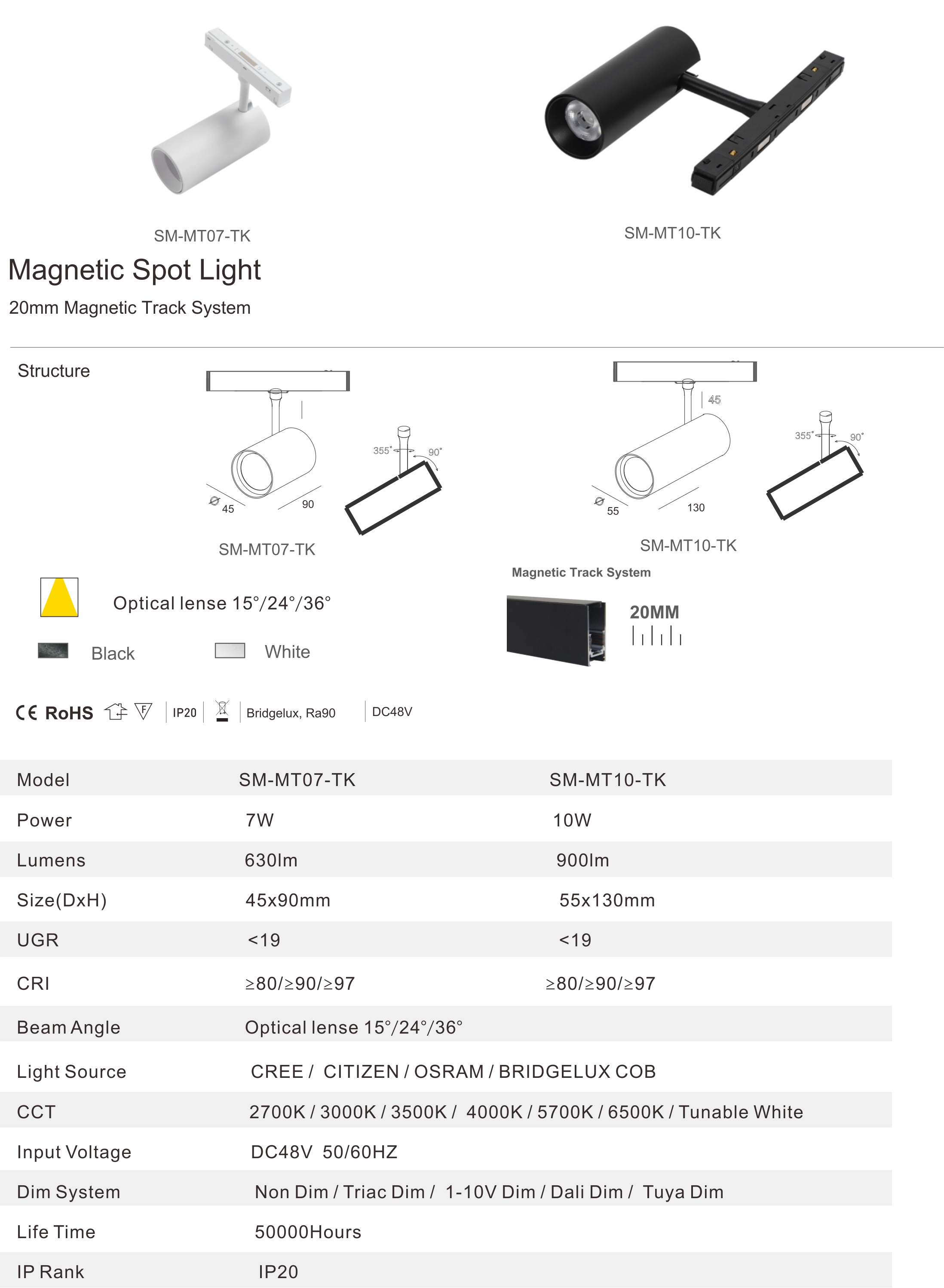

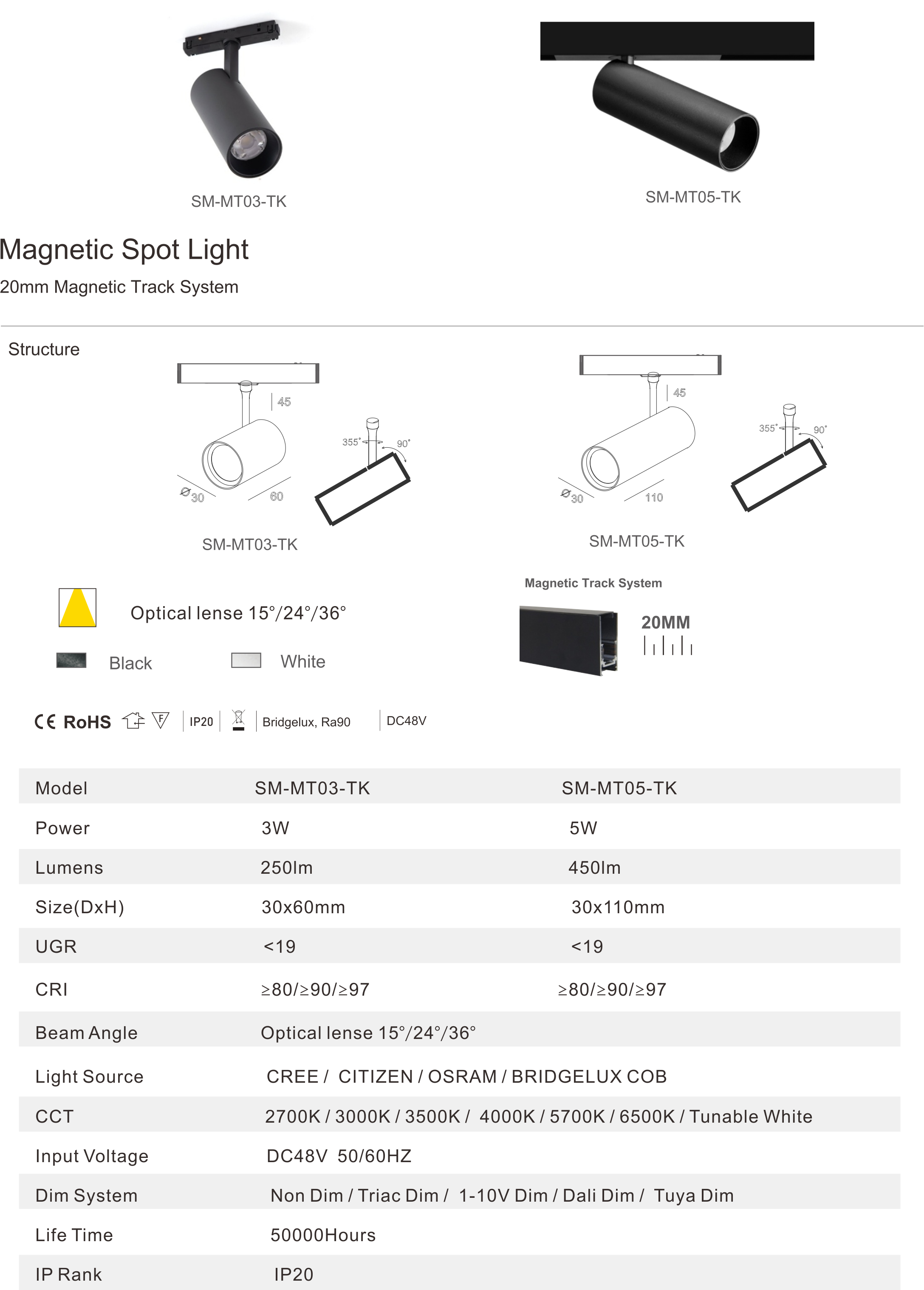

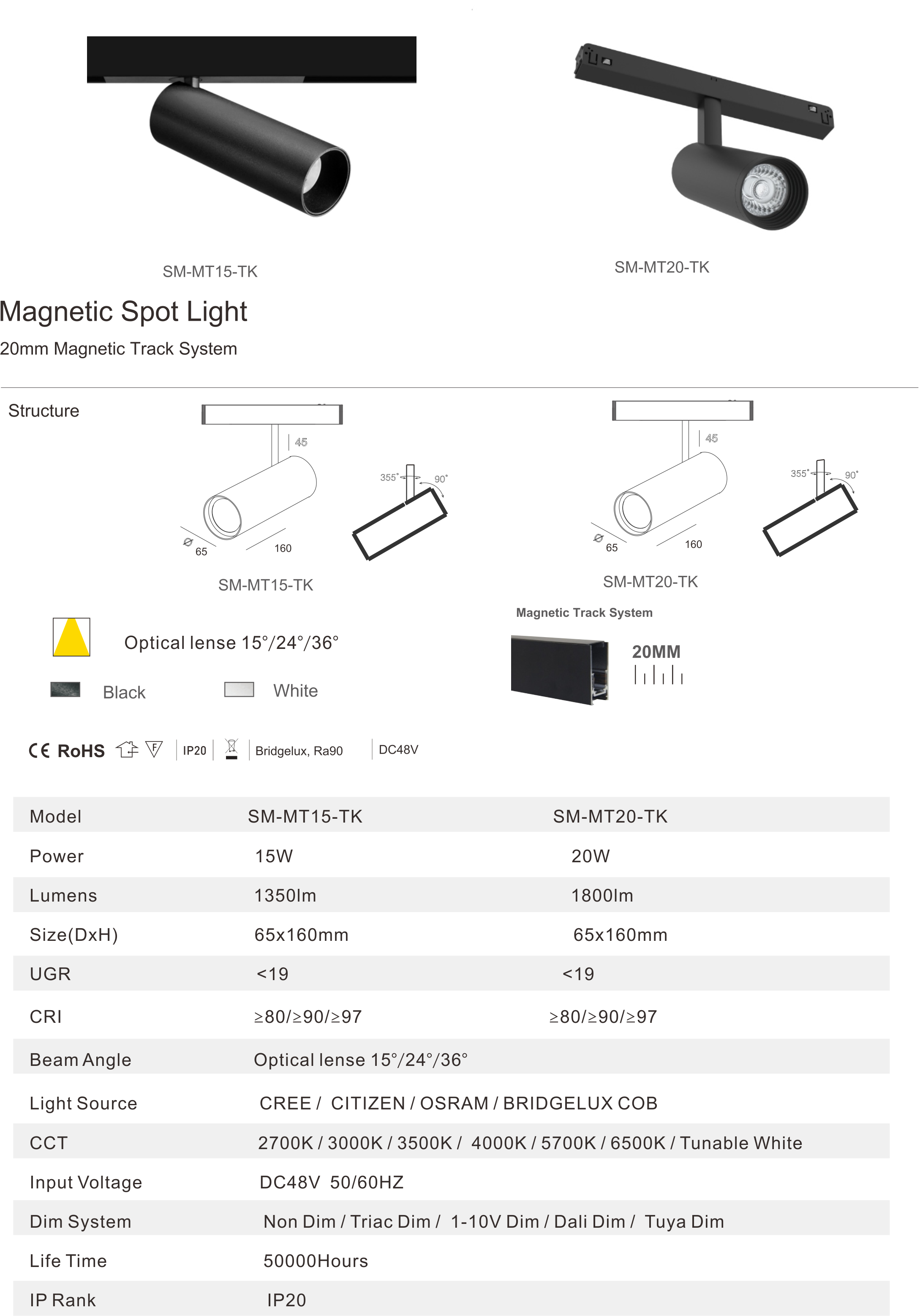

Model: SM-MT03-TK SM-MT05-TK SM-MT07-TK SM-MT10-TK SM-MT15-TK SM-MT20-TK SM-MT30-TK

Power： 3W 5W 7W 10W 15W 20W 30W

Size: 30x80mm 30x110mm 45x90mm 55x130mm 65x160mm 65x160mm 76x160mm

Beam Angle: 15°24°36°60°

LED Chip: CITIZEN, CREE, BRIDGELUX COB LED

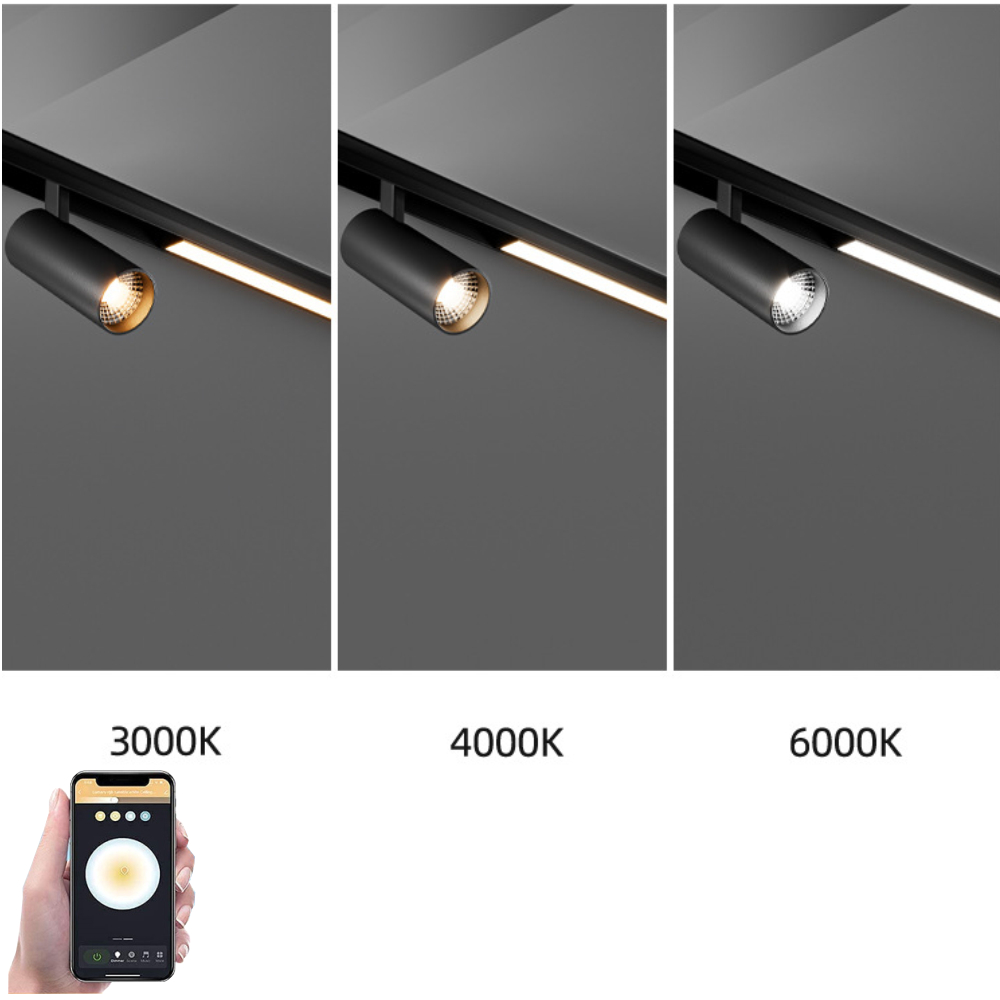

CCT: 2700K, 3000K, 3500K, 4000K, 5700K, 6500K, Tunable White 2700K-6500K

CRI: Ra≥80/Ra≥90/Ra≥97

Driver: DC48V, 50/60Hz

Driver Brand: Lifud etc.

IP Rank: IP40 Indoor using only

Color finish： Sand White / Sand Black

Lifespan: 50000Hours

Dimmable: Non-dimmable, Triac-dimmable, 1-10V dimmable, Dali dimmable, Tuya-wifi dimmable, Tuya-Zigbee dimmable, Tuya-Bluetooth dimmable

knob switch dimmable, CCT dip dimmable

Warranty: 5years warranty

Certification: CE Rohs

No comment

Next : 20mm Curve Magnetic Light

Product Detail

Model: SM-MT03-TK SM-MT05-TK SM-MT07-TK SM-MT10-TK SM-MT15-TK SM-MT20-TK SM-MT30-TK

Power： 3W 5W 7W 10W 15W 20W 30W

Size: 30x80mm 30x110mm 45x90mm 55x130mm 65x160mm 65x160mm 76x160mm

Beam Angle: 15°24°36°60°

LED Chip: CITIZEN, CREE, BRIDGELUX COB LED

CCT: 2700K, 3000K, 3500K, 4000K, 5700K, 6500K, Tunable White 2700K-6500K

CRI: Ra≥80/Ra≥90/Ra≥97

Driver: DC48V, 50/60Hz

Driver Brand: Lifud etc.

IP Rank: IP40 Indoor using only

Color finish： Sand White / Sand Black

Lifespan: 50000Hours

Dimmable: Non-dimmable, Triac-dimmable, 1-10V dimmable, Dali dimmable, Tuya-wifi dimmable, Tuya-Zigbee dimmable, Tuya-Bluetooth dimmable

knob switch dimmable, CCT dip dimmable

Warranty: 5years warranty

Certification: CE Rohs
