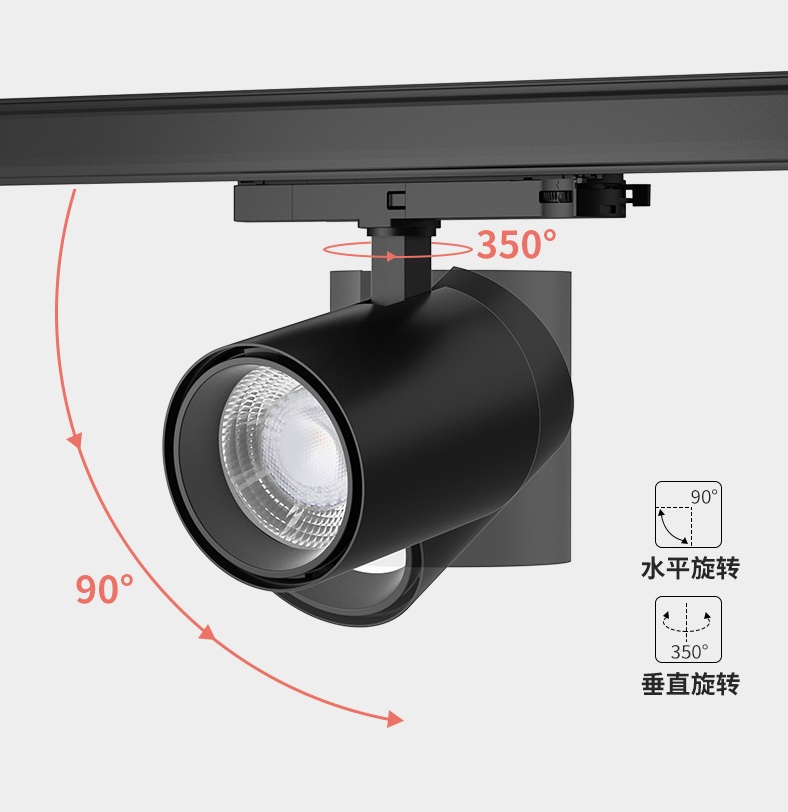

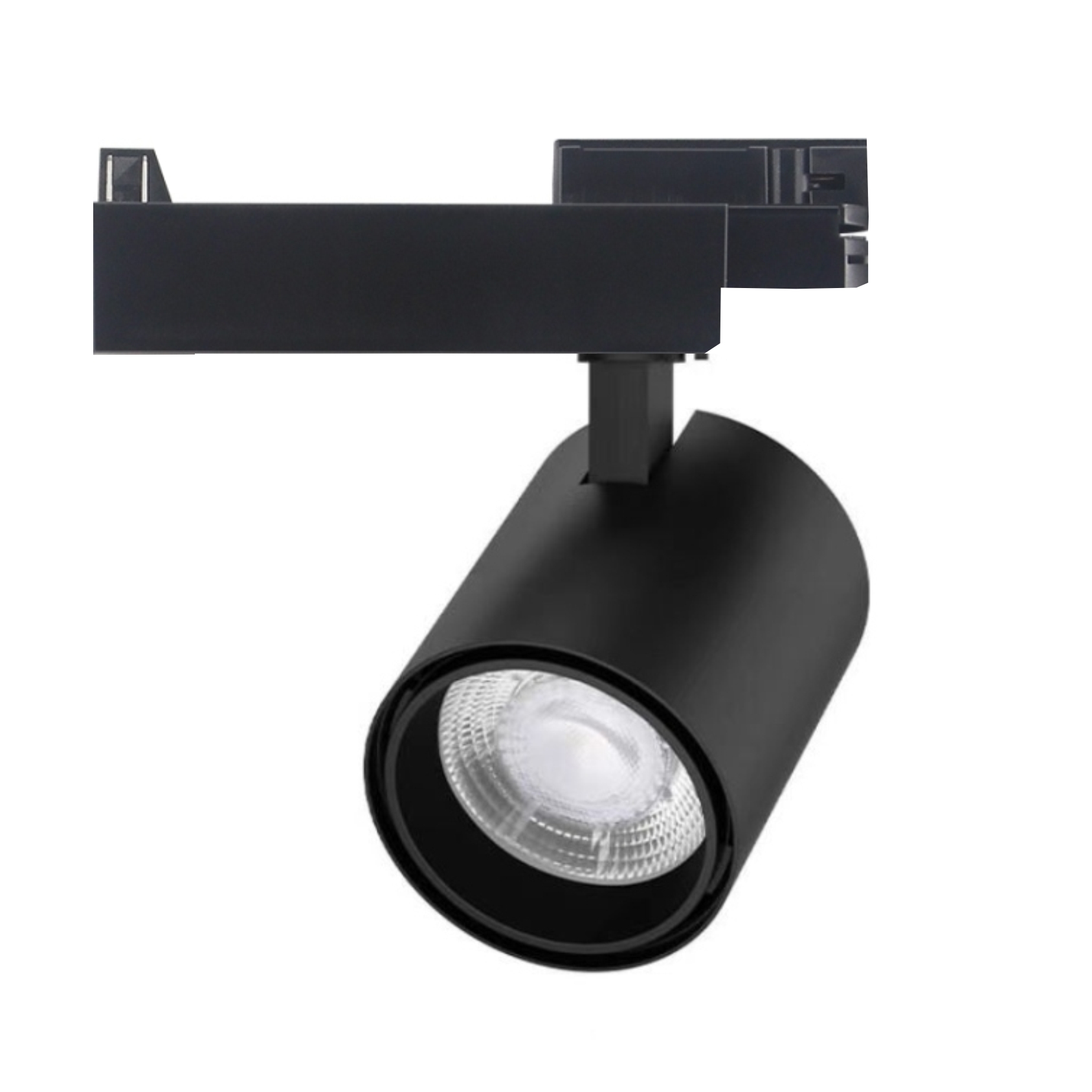

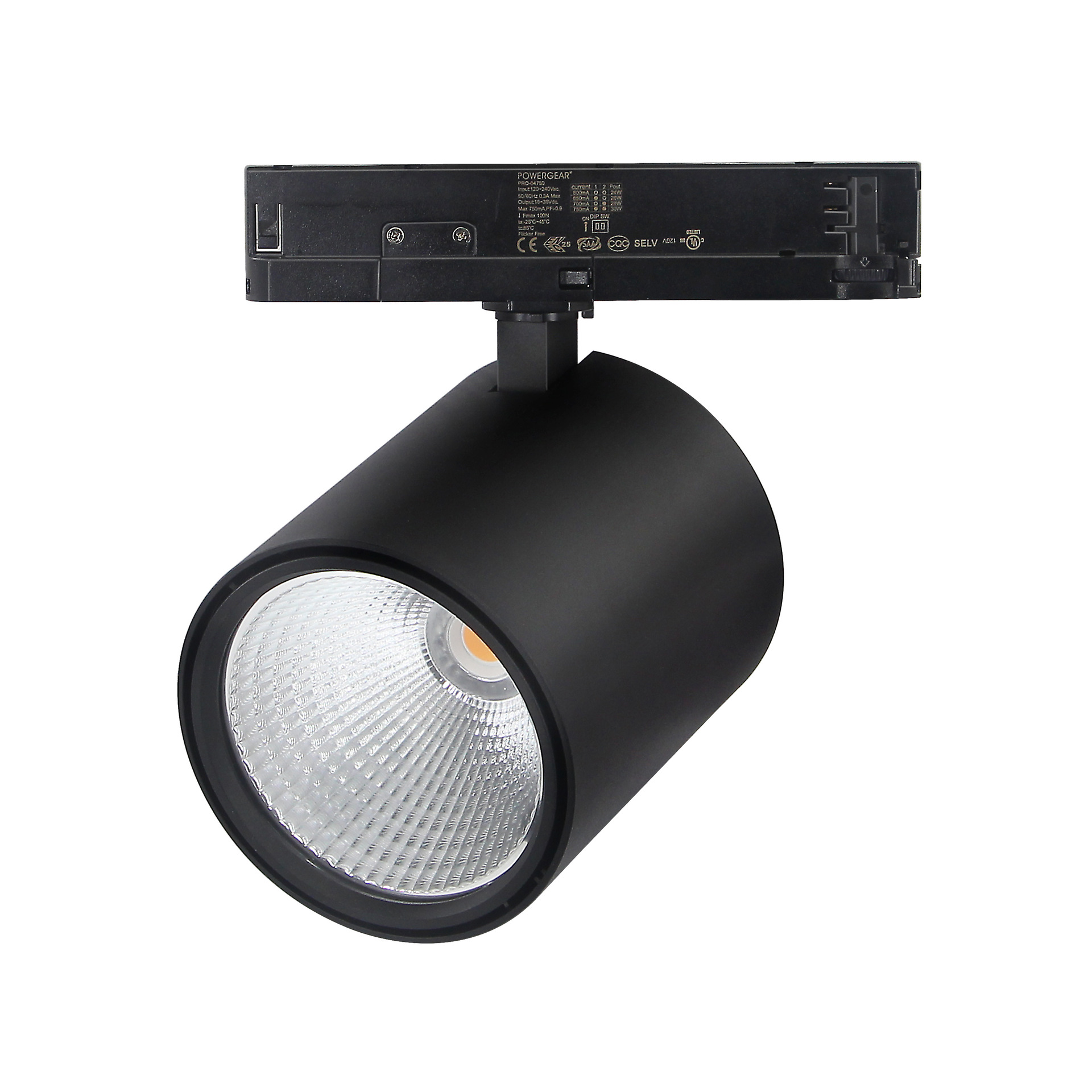

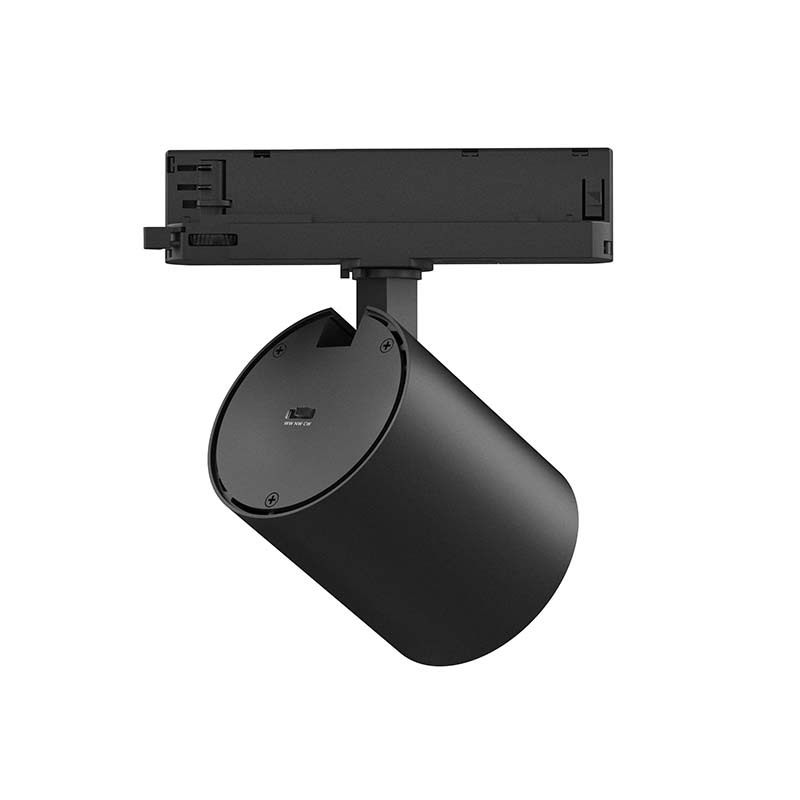

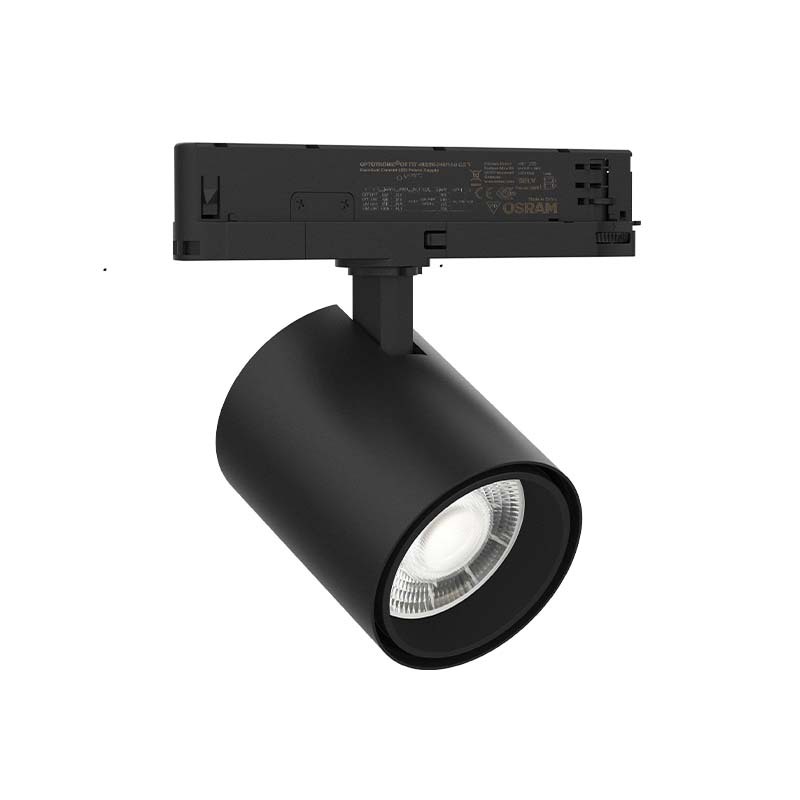

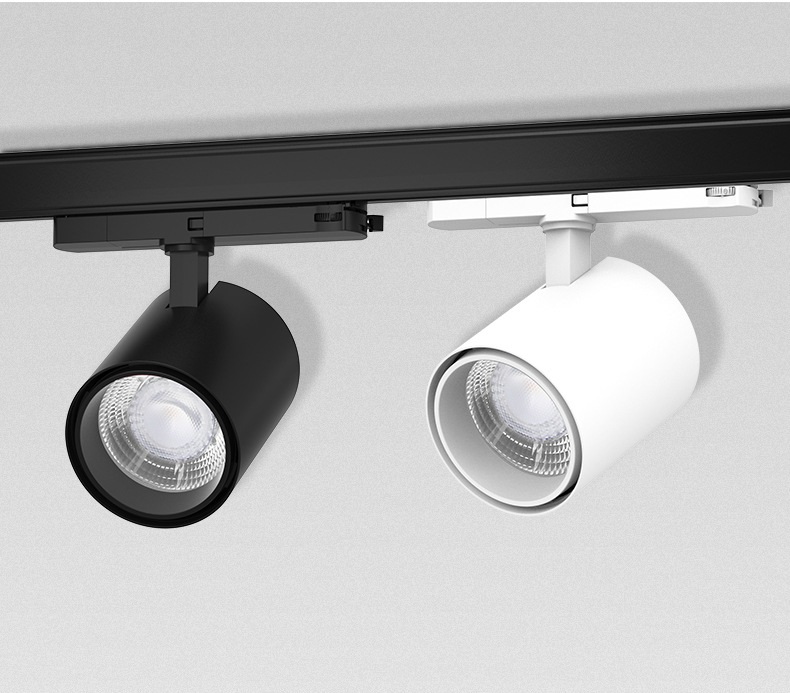

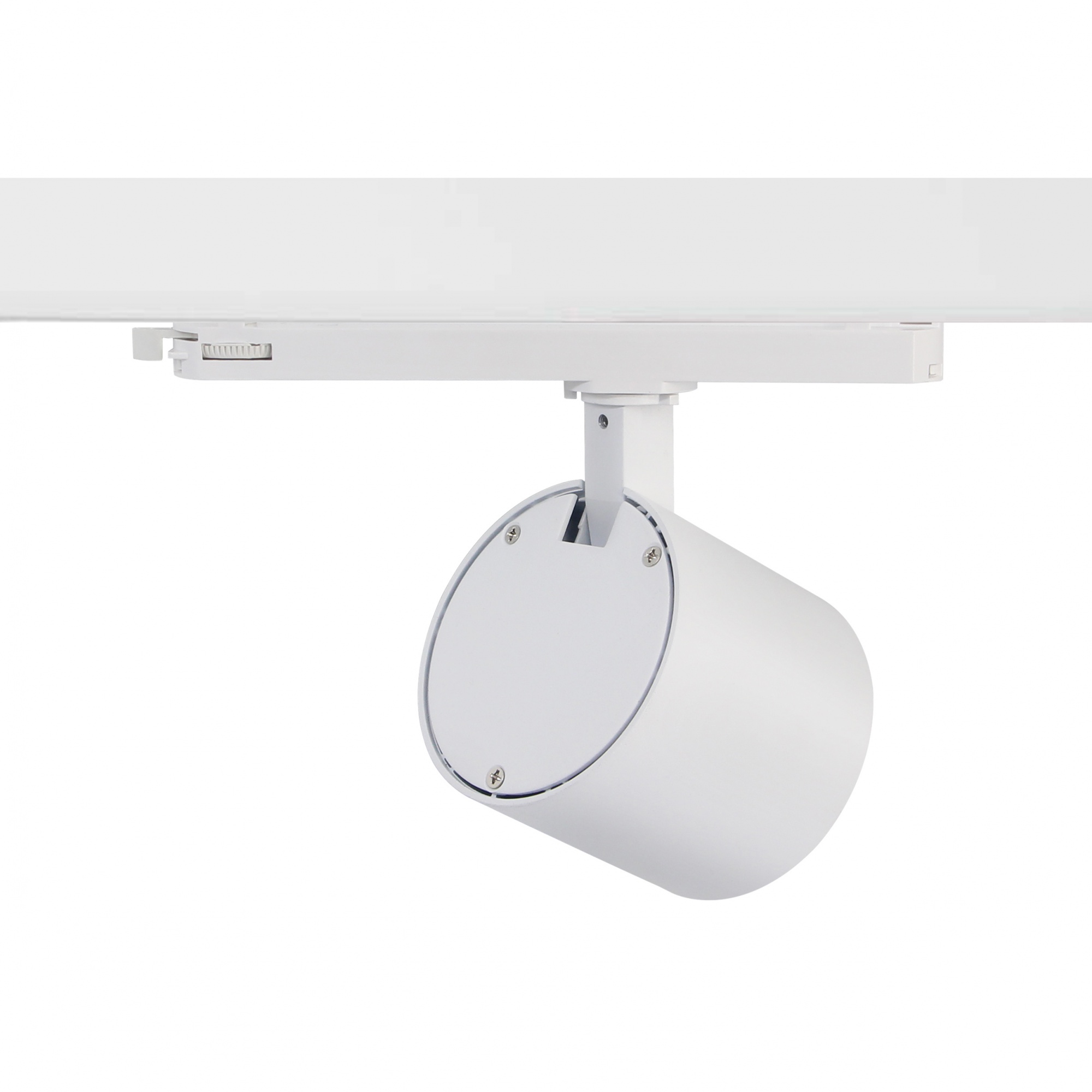

TK Short-Arm LED Track Light

Price Interview

TK Short-Arm LED Track Light

Interview

Model

SM-TK2007, 20W, 15°24°36°60° SM-TK3007,30W, 15°24°36°60° SM-TK2008,20W, 15°24°36°60° SM-TK3008,30W, 15°24°36°60°

CCT

2700K 3000K 3500K 4000K 5700K 6500K Tunable White 2700k-6500K RGB/RGBW/RGBCCT

Dimmable

Non dim Triac dim 1-10V dim Dali dim Tuya Zigbee dim Tuya Wifi dim Tuya Bluetooth dim know dim

Specifications select

Product Details Installation Project

Model:              SM-TK2007              SM-TK3007                    SM-TK2008                   SM-TK3008

Power:           20W                          30W                                20W                              30W

Size:                 91xH112mm             91xH112mm                   91xH112mm                  91xH112mm

Beam Angle:     15°24°36°60°

LED Chip:         CITIZEN, CREE, BRIDGELUX COB LED

CCT:                 2700K, 3000K, 3500K, 4000K, 5700K, 6500K, Tunable White 2700K-6500K, RGB, RGBW, RGBCCT

CRI:                  Ra≥80/Ra≥90/Ra≥97

Driver:               AC100-130V, AC200-240V, 50/60Hz

Driver Brand:     Lifud, kegu, boke, philips, osram, tridonic etc.

IP Rank:            IP40 Indoor using only

Color finish:     Sand White / Sand Black

Lifespan:           50000Hours


Dimmable: Non-dimmable, Triac-dimmable, 1-10V dimmable, Dali dimmable, Tuya-wifi dimmable, Tuya-Zigbee dimmable, Tuya-Bluetooth dimmable

knob switch dimmable, CCT dip dimmable


Warranty: 5years warranty


Certification: CE Rohs



No comment

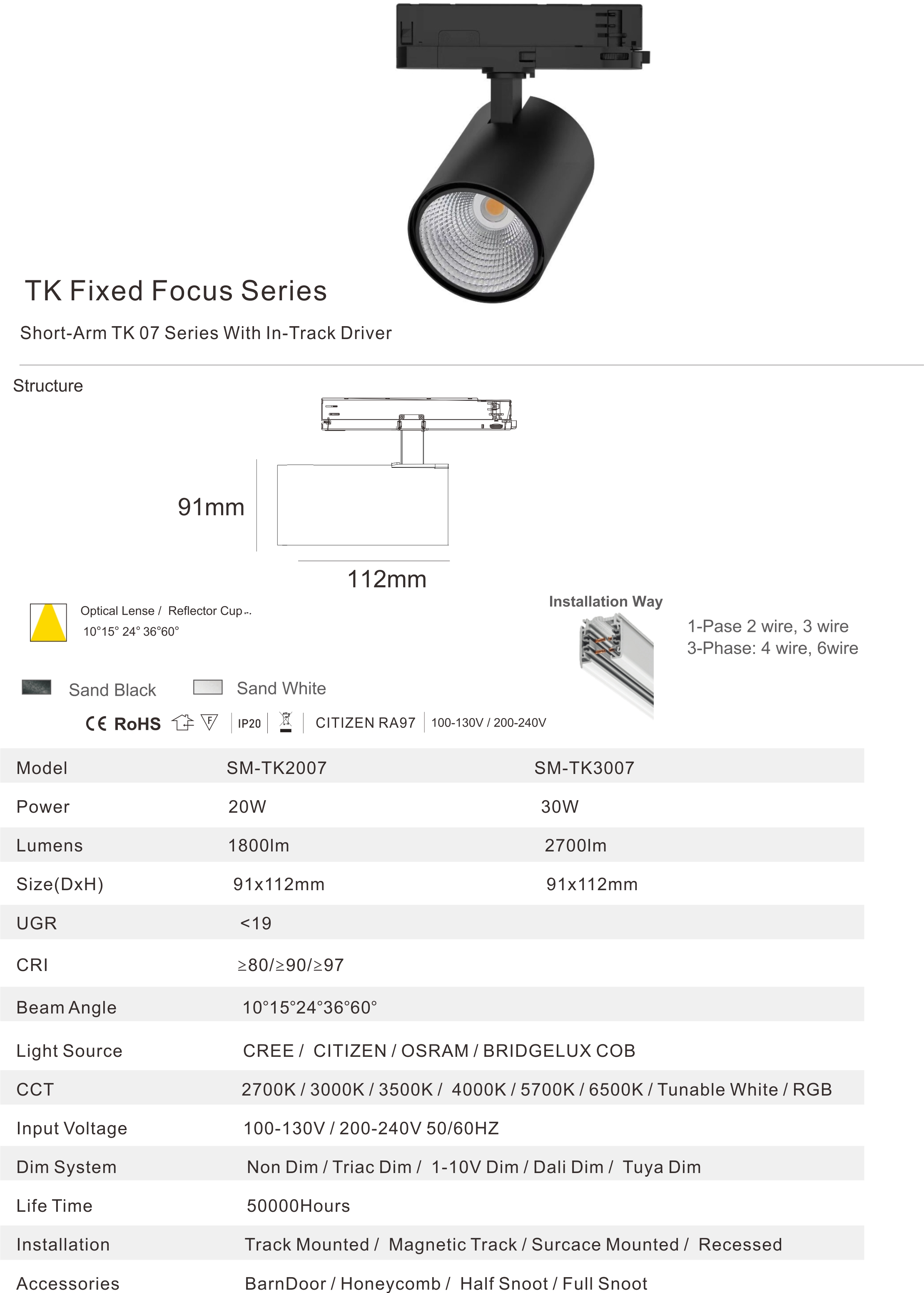

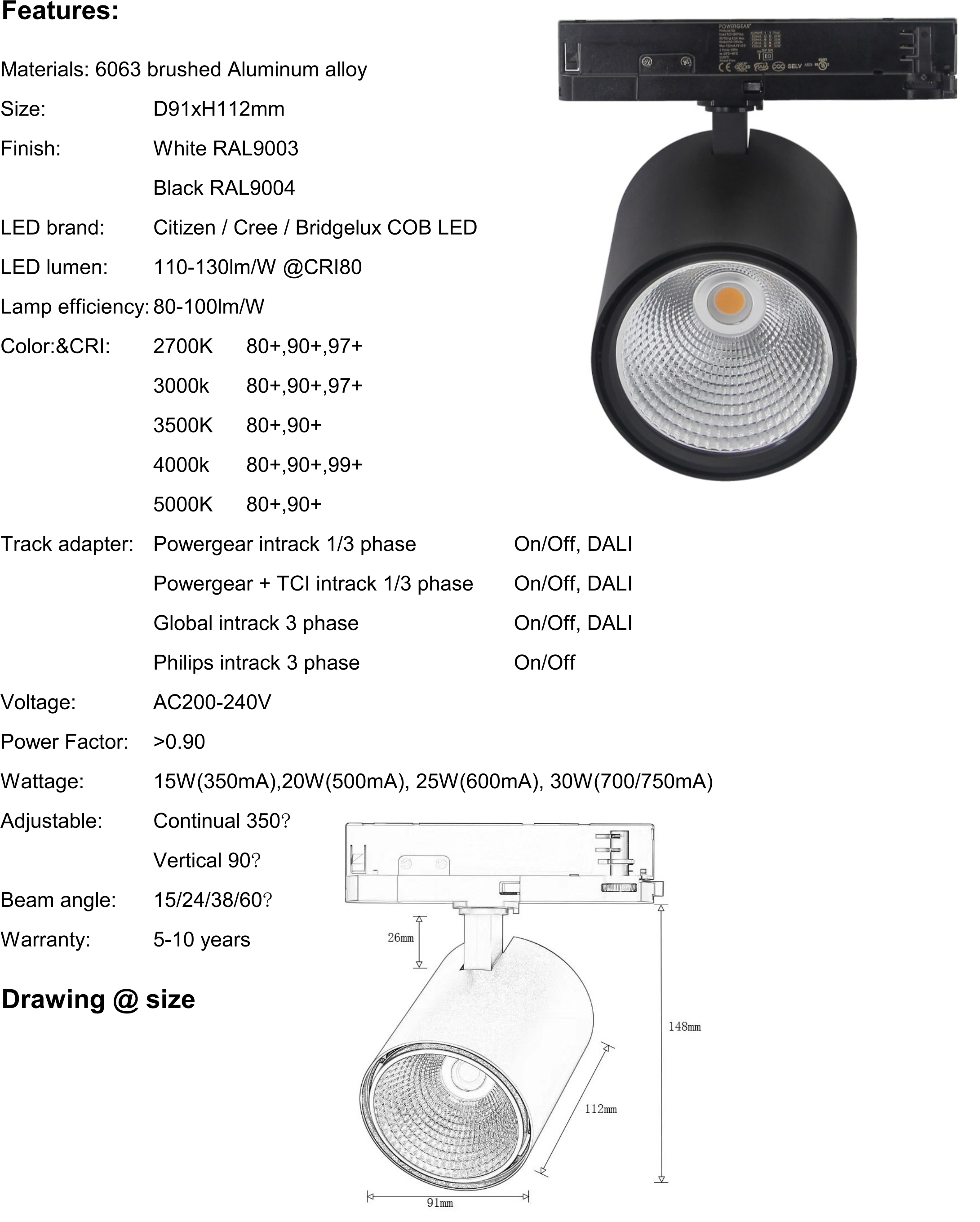

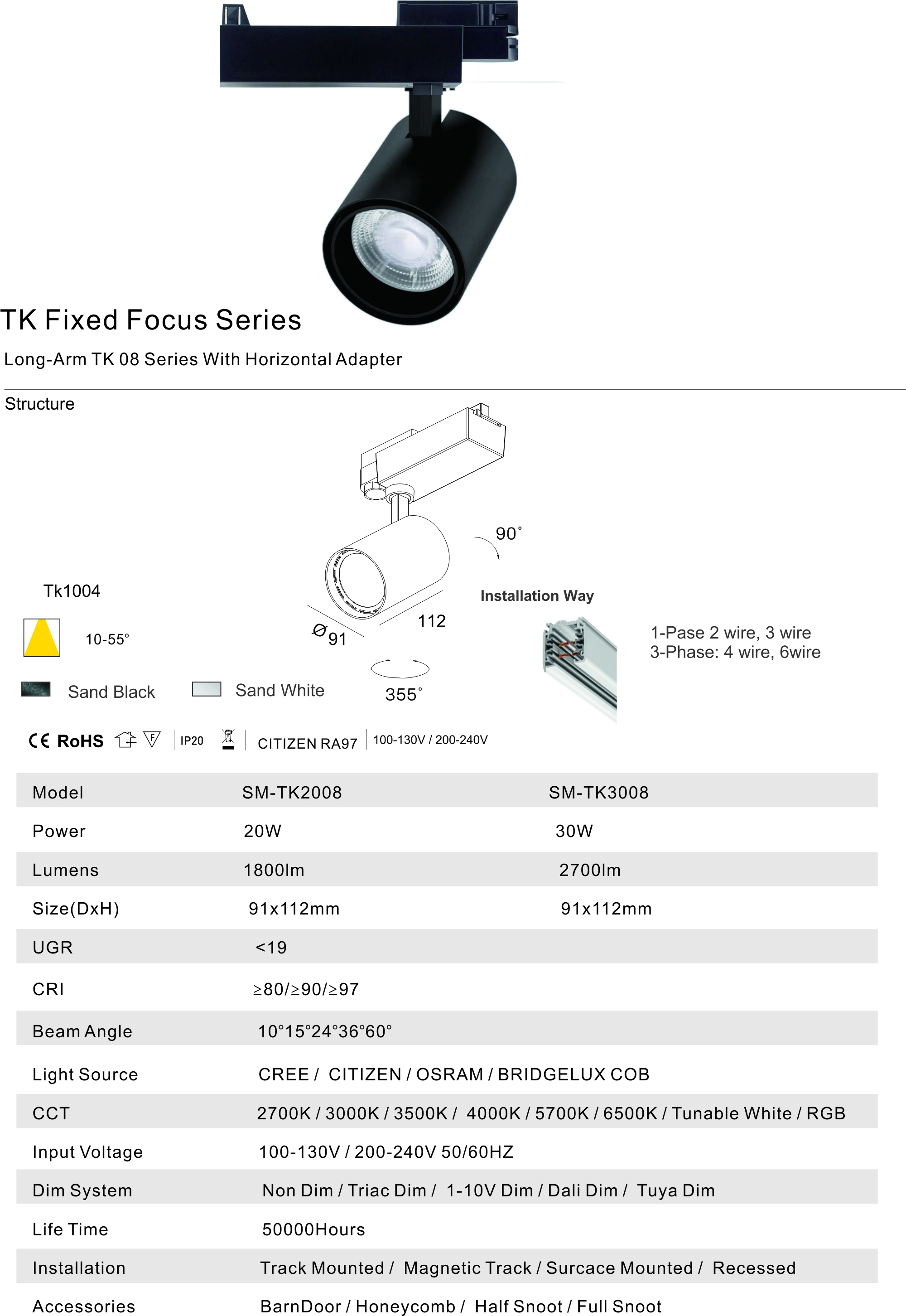

Product Details

Model:              SM-TK2007              SM-TK3007                    SM-TK2008                   SM-TK3008

Power:           20W                          30W                                20W                              30W

Size:                 91xH112mm             91xH112mm                   91xH112mm                  91xH112mm

Beam Angle:     15°24°36°60°

LED Chip:         CITIZEN, CREE, BRIDGELUX COB LED

CCT:                 2700K, 3000K, 3500K, 4000K, 5700K, 6500K, Tunable White 2700K-6500K, RGB, RGBW, RGBCCT

CRI:                  Ra≥80/Ra≥90/Ra≥97

Driver:               AC100-130V, AC200-240V, 50/60Hz

Driver Brand:     Lifud, kegu, boke, philips, osram, tridonic etc.

IP Rank:            IP40 Indoor using only

Color finish:     Sand White / Sand Black

Lifespan:           50000Hours


Dimmable: Non-dimmable, Triac-dimmable, 1-10V dimmable, Dali dimmable, Tuya-wifi dimmable, Tuya-Zigbee dimmable, Tuya-Bluetooth dimmable

knob switch dimmable, CCT dip dimmable


Warranty: 5years warranty


Certification: CE Rohs


Installation

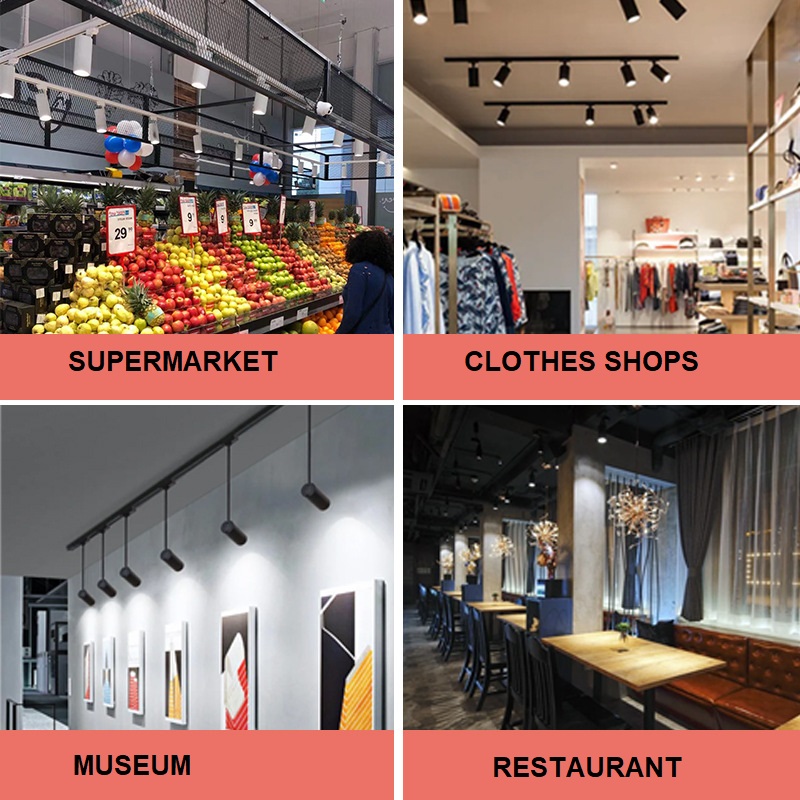

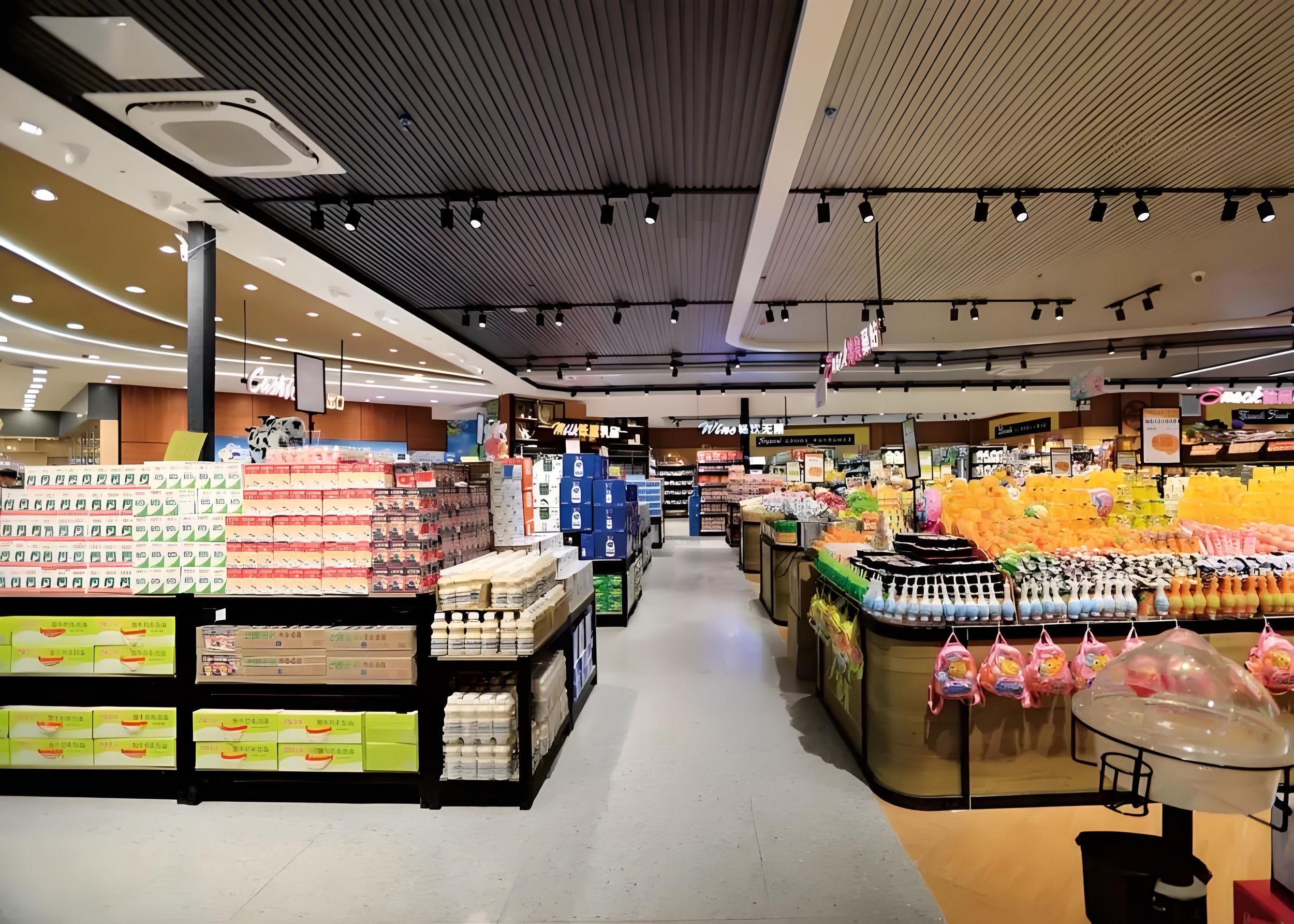

Project

TK Short-Arm LED Track Light
Long press to look detail
