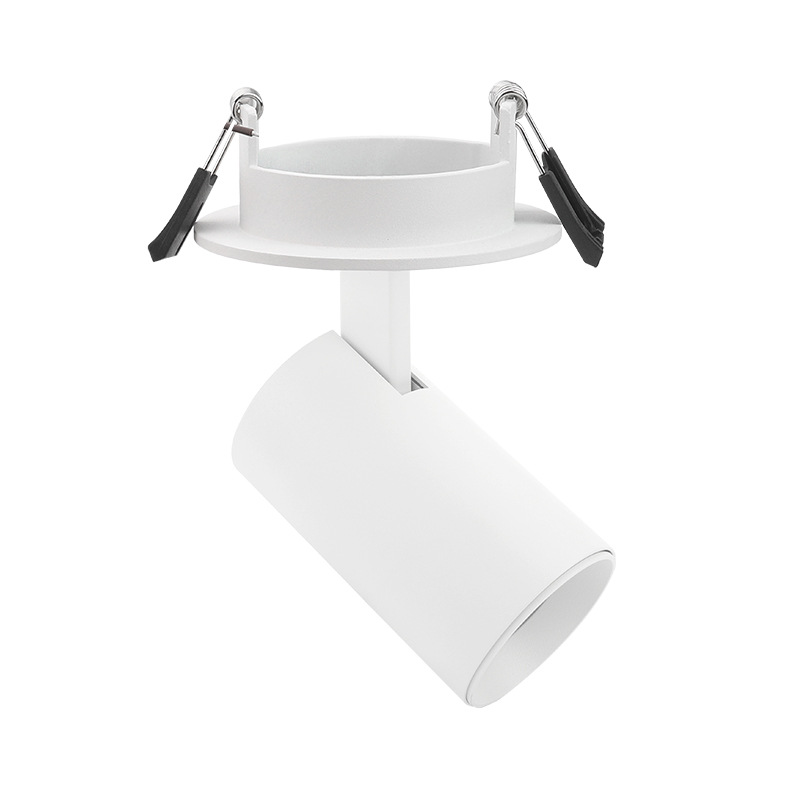

TK09 Recessed Track Light

Price Interview

TK09 Recessed Track Light

Interview

Model

SM-TK309,3W,15°24°36°60° SM-TK509,5W,15°24°36°60° SM-TK709,7W,15°24°36°60° SM-TK1009,10W,15°24°36°60° SM-TK1509,15W,15°24°36°60° SM-TK2009,20W,15°24°36°60° SM-TK3009,30W,15°24°36°60° SM-TK4009,40W,15°24°36°60°

CCT

2700K 3000K 3500K 4000K 5700K 6500K Tunable White 2700-6500K RGB/RGBW/RGBCCT

Dimmable

Non-dim Triac dim 1-10V dim Dali dim Tuya Zigbee dim Tuya Bluetooth dim Tuya wifi dim Knob Switch dim CCT Dip dim CCT+Knob dim

Specifications select

Product Detail Installation Project


Model:              SM-TK309           SM-TK509           SM-TK709           SM-TK1009           SM-TK1509           SM-TK2009           SM-TK3009           SM-TK4009

Power:           3W                       5W                       7W                       10W                       15W                      20W                       30W                       40W

Size:                 30xH80mm          30xH110mm        45xH90mm           55xH135mm          55x135mm           65x160mm            76x160mm             85x160mm

Beam Angle:     15°24°36°60°

LED Chip:         CITIZEN, CREE, BRIDGELUX COB LED

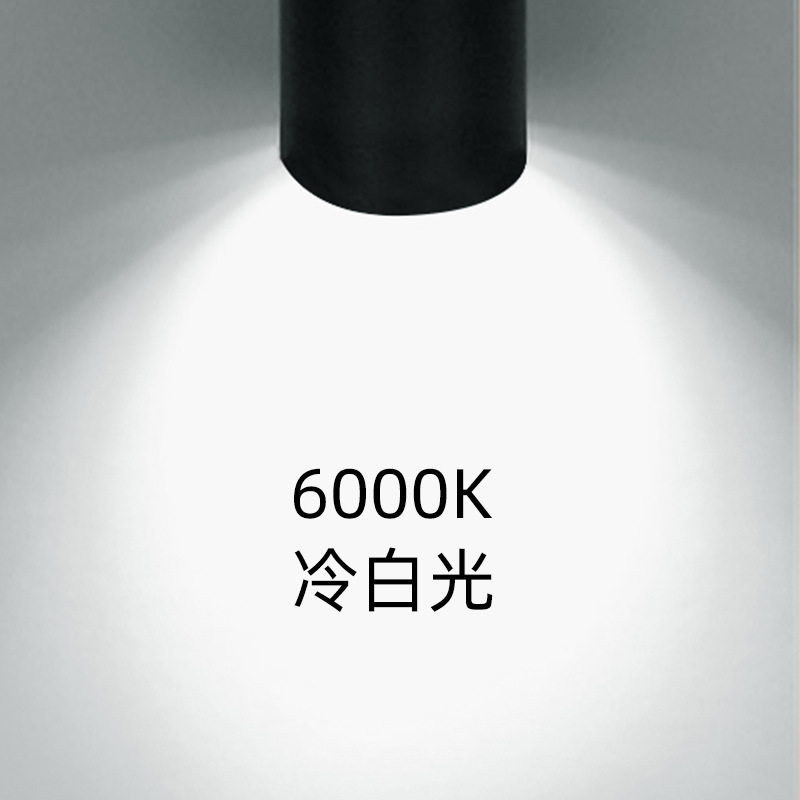

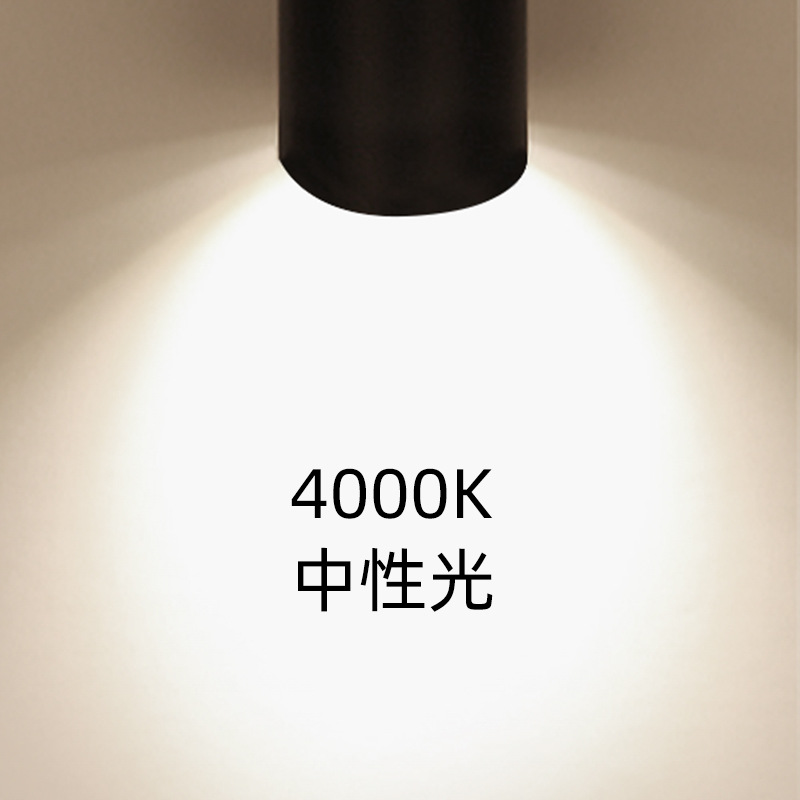

CCT:                 2700K, 3000K, 3500K, 4000K, 5700K, 6500K, Tunable White 2700K-6500K, RGB, RGBW, RGBCCT

CRI:                  Ra≥80/Ra≥90/Ra≥97

Driver:               AC100-130V, AC200-240V, 50/60Hz

Driver Brand:     Lifud, kegu, boke, philips, osram, tridonic etc.

IP Rank:            IP40 Indoor using only

Color finish:     Sand White / Sand Black

Lifespan:           50000Hours


Dimmable: Non-dimmable, Triac-dimmable, 1-10V dimmable, Dali dimmable, Tuya-wifi dimmable, Tuya-Zigbee dimmable, Tuya-Bluetooth dimmable

knob switch dimmable, CCT dip dimmable


Warranty: 5years warranty


Certification: CE Rohs




No comment

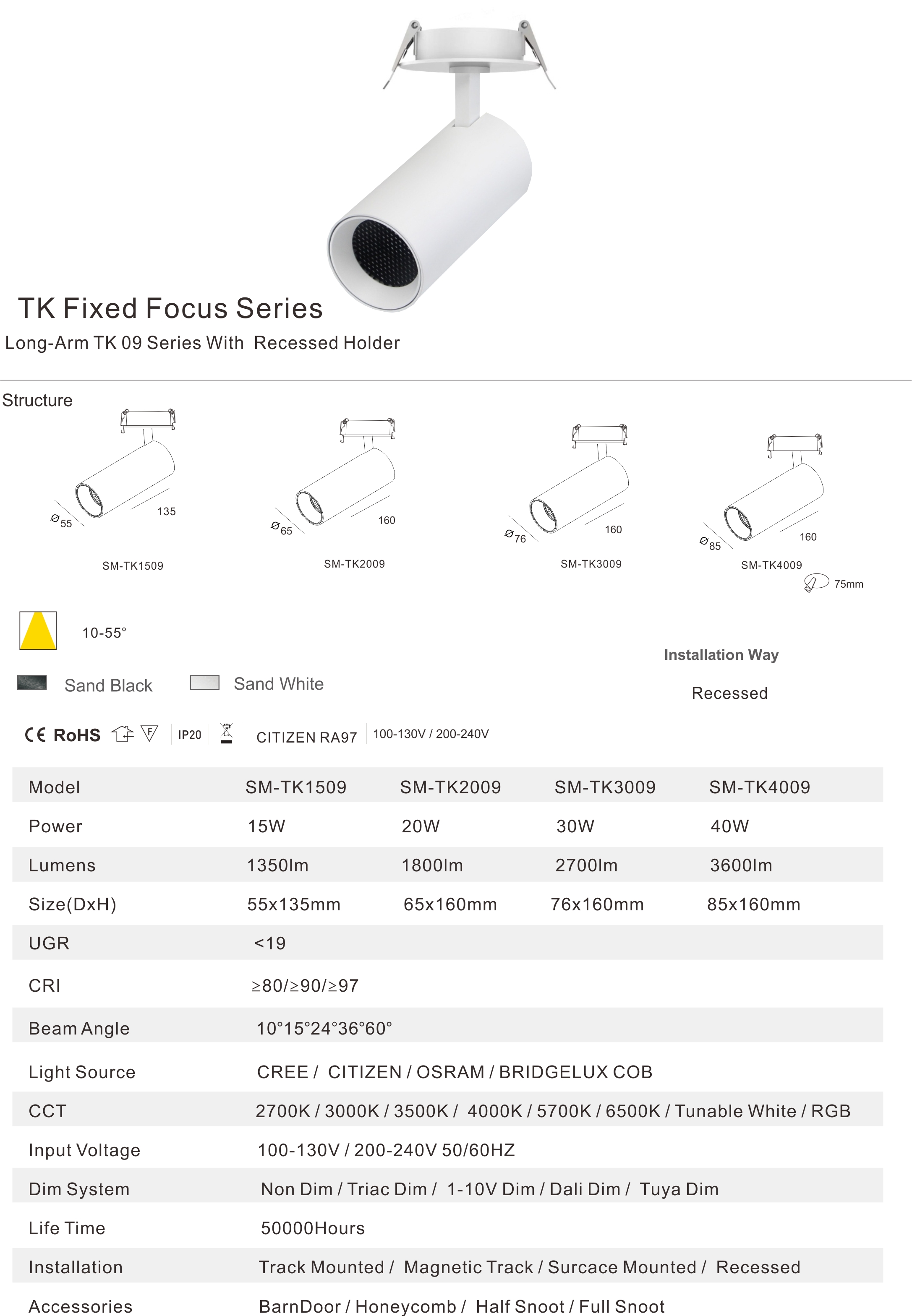

Product Detail


Model:              SM-TK309           SM-TK509           SM-TK709           SM-TK1009           SM-TK1509           SM-TK2009           SM-TK3009           SM-TK4009

Power:           3W                       5W                       7W                       10W                       15W                      20W                       30W                       40W

Size:                 30xH80mm          30xH110mm        45xH90mm           55xH135mm          55x135mm           65x160mm            76x160mm             85x160mm

Beam Angle:     15°24°36°60°

LED Chip:         CITIZEN, CREE, BRIDGELUX COB LED

CCT:                 2700K, 3000K, 3500K, 4000K, 5700K, 6500K, Tunable White 2700K-6500K, RGB, RGBW, RGBCCT

CRI:                  Ra≥80/Ra≥90/Ra≥97

Driver:               AC100-130V, AC200-240V, 50/60Hz

Driver Brand:     Lifud, kegu, boke, philips, osram, tridonic etc.

IP Rank:            IP40 Indoor using only

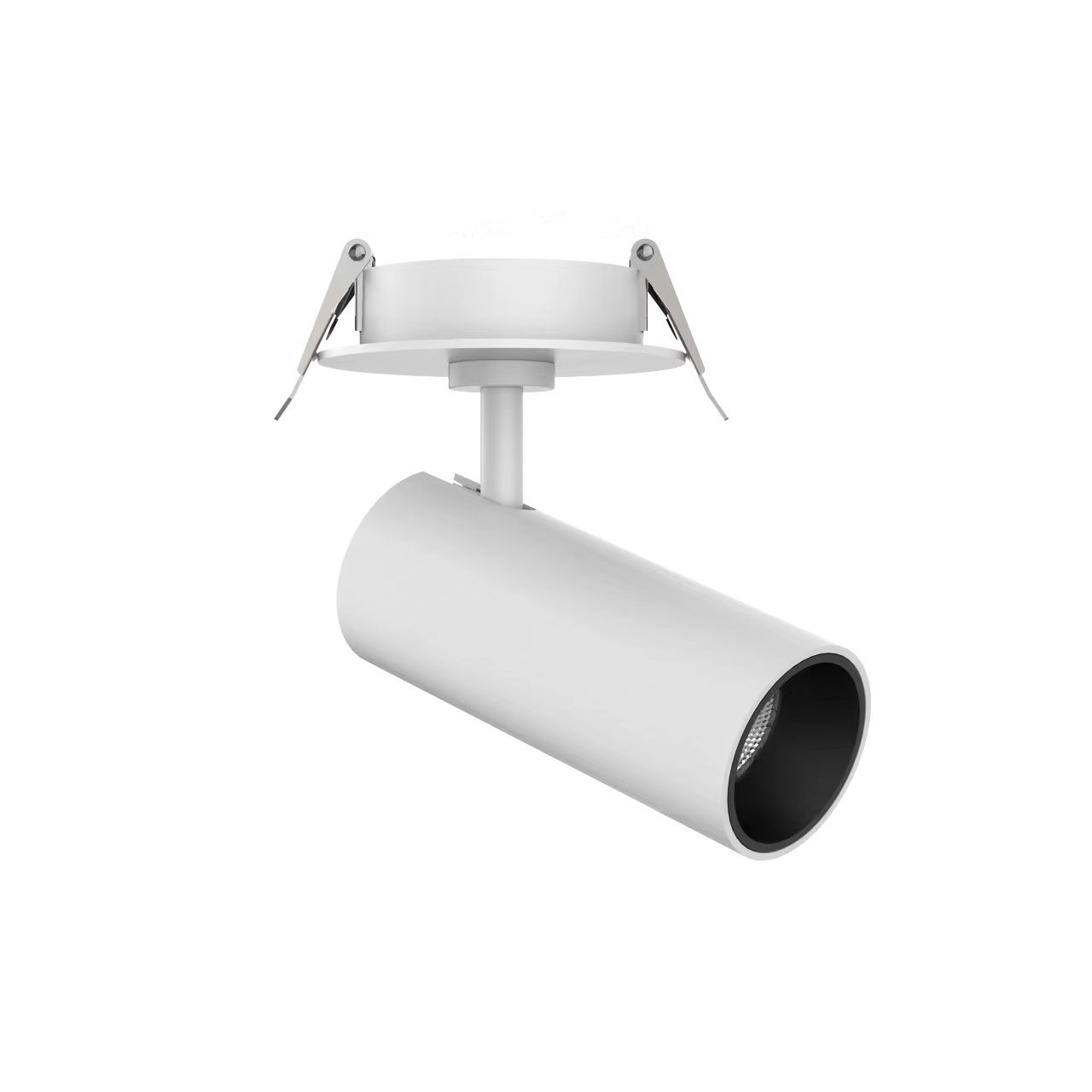

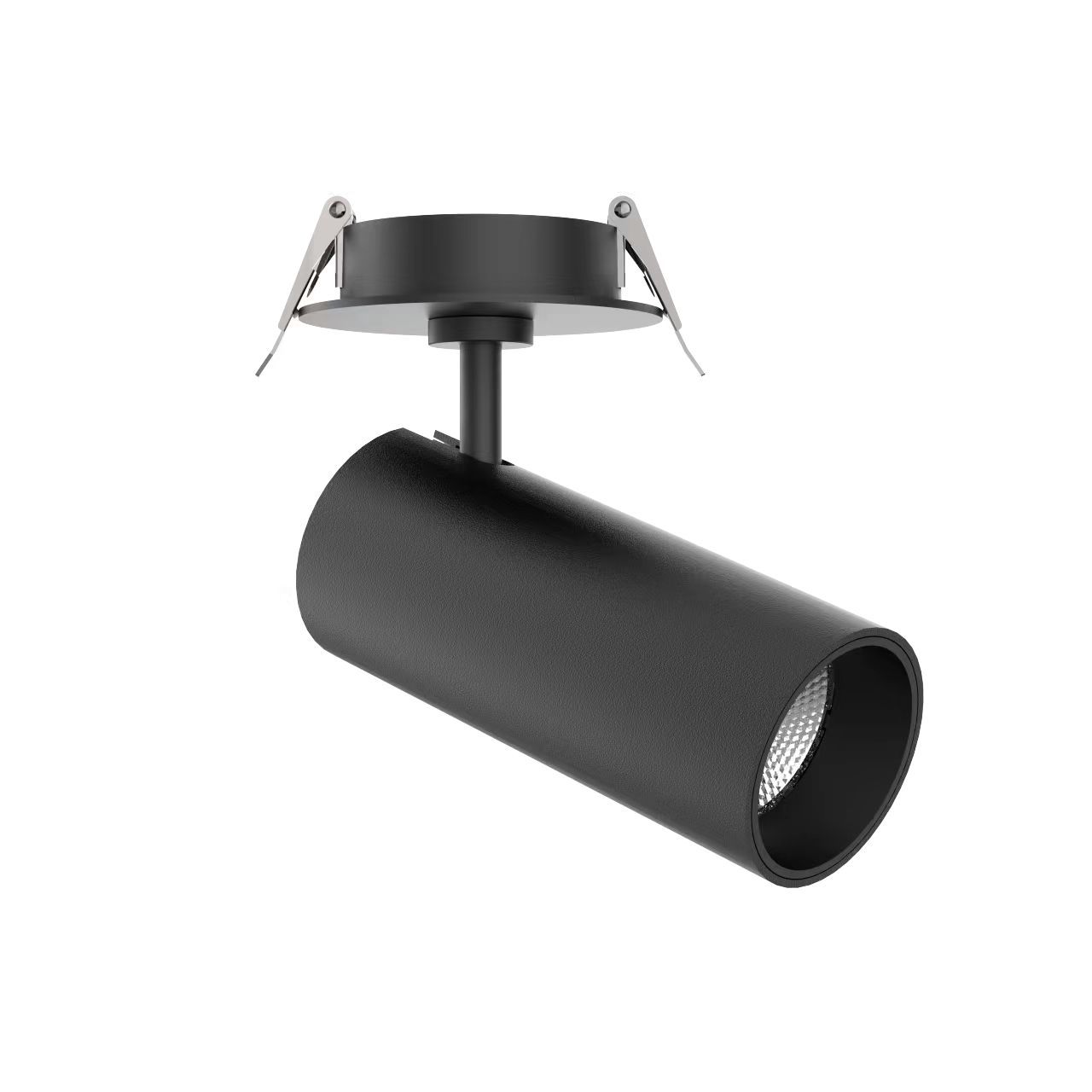

Color finish:     Sand White / Sand Black

Lifespan:           50000Hours


Dimmable: Non-dimmable, Triac-dimmable, 1-10V dimmable, Dali dimmable, Tuya-wifi dimmable, Tuya-Zigbee dimmable, Tuya-Bluetooth dimmable

knob switch dimmable, CCT dip dimmable


Warranty: 5years warranty


Certification: CE Rohs



Installation

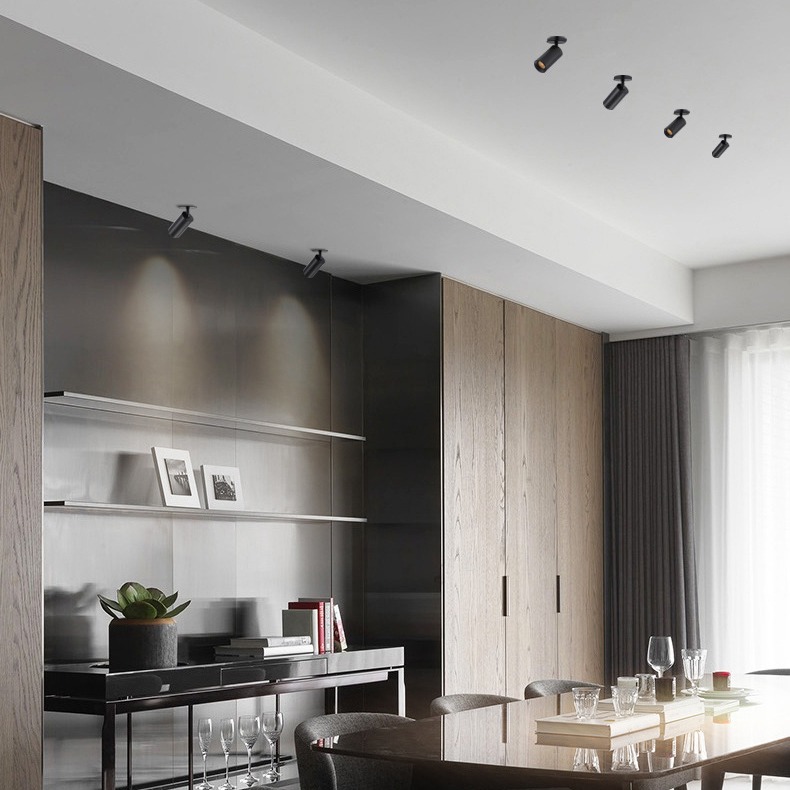

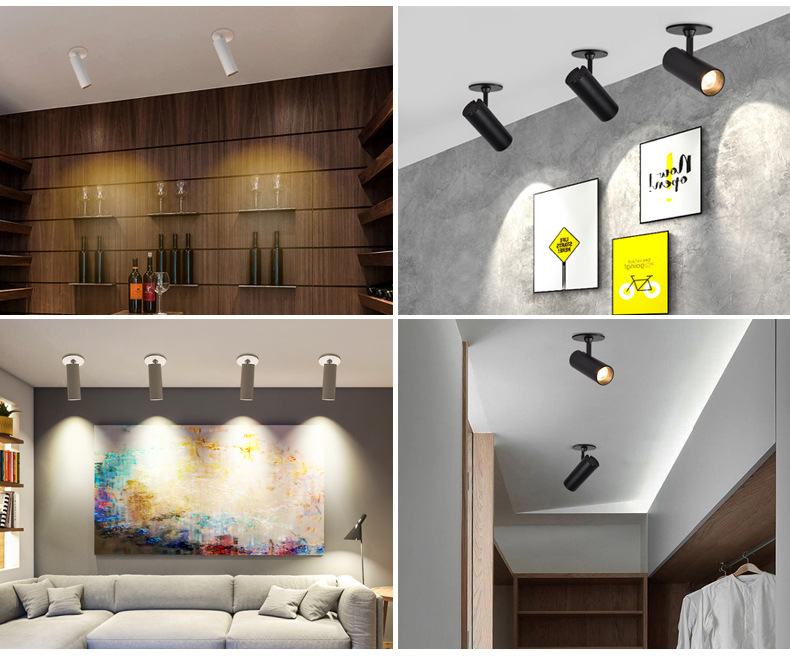

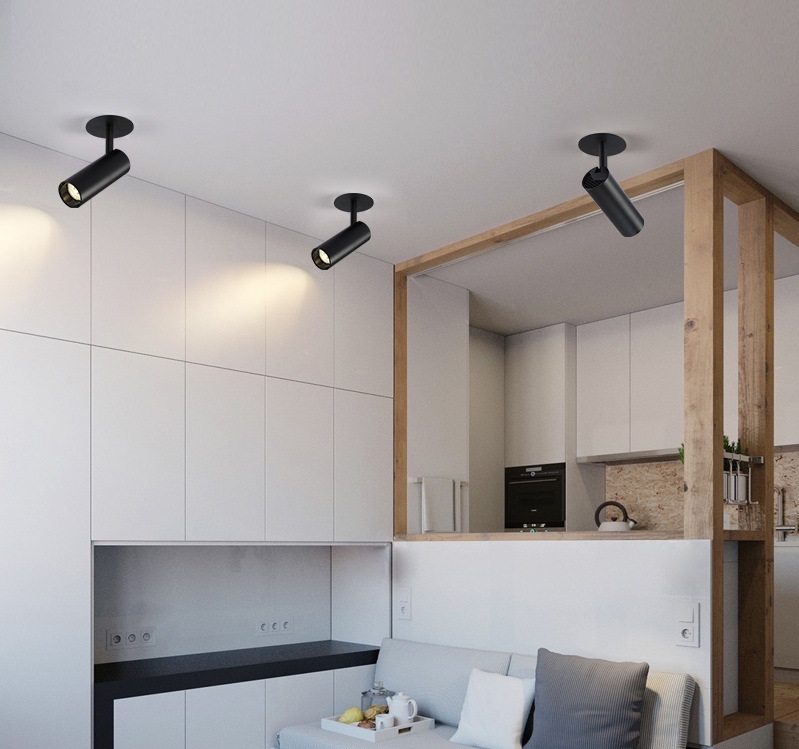

Project

TK09 Recessed Track Light
